   Disc Spring as per DIN 6796


Disc Spring as per DIN 6796

Outer Diameter
3mm to 200mm

Thickness
0.2mm to 12mm


Scope and Field of Application
Disc Spring :

Conical spring washers covered in this standard are deemed to be spring washers designed for the use for bolt/nut assemblies involving bolts of property classes 8.8 to10.9 as specified in ISO 898 part 1. They are intended to counteract the effect of setting which results in bolt/nut assemblies working loose (see DIN 267 part 26). They do not effectively prevent loosening of the assembly under varying radial load and are designed for use with short bolt predominantly subject to thrust.


Nominal

Size

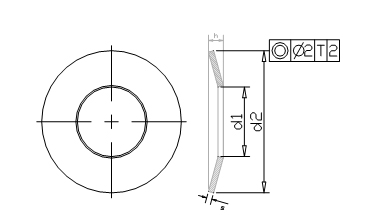

d1

 H14

d2

h14

s

 3 )

(max1     min2)

Mass

7.85 (kg/dm3)per 1000 units
in kg  »

For
thread
 size

24)

2.2

5

0.4

0.6

0.5

0.05

2

2.54)

2.7

6

0.5

0.72

0.61

0.09

2.5

34)

3.2

7

0.6

0.85

0.72

0.14

3

3.54)

3.7

8

0.8

1.06

0.92

0.25

3.5

4

4.3

9

1

1.3

1.12

0.38

4

5

5.3

11

1.2

1.55

1.35

0.69

5

6

6.4

14

1.5

2

1.7

1.43

6

7

7.4

17

1.75

2.3

2

2.53

7

8

8.4

18

2

2.6

2.24

3.13

8

10

10.5

23

2.5

3.2

2.8

6.45

10

12

13

29

3

3.95

3.43

12.4

12

14

15

35

3.5

4.65

4.04

21.6

14

16

17

39

4

5.25

4.58

30.4

16

18

19

42

4.5

5.8

5.08

38.9

18

20

21

45

5

6.4

5.6

48.8

20

22

23

49

5.5

7.05

6.15

63.5

22

24

25

56

6

7.75

6.77

92.2

24

27

28

60

6.5

8.35

7.3

113

27

30

31

70

7

9.2

8

170

30



1)     Maximum size at delivery.

2)     Minimum size at the test for permanent set as specified in DIN 267 part 26.

3)     See DIN 1644 for limit deviation for s not exceeding than 6 mm and DIN1543 for s exceeding 6 mm

4)       Test value for the spring force test  as describing in DIN 26/part 26 have not been specified for this nominal size
